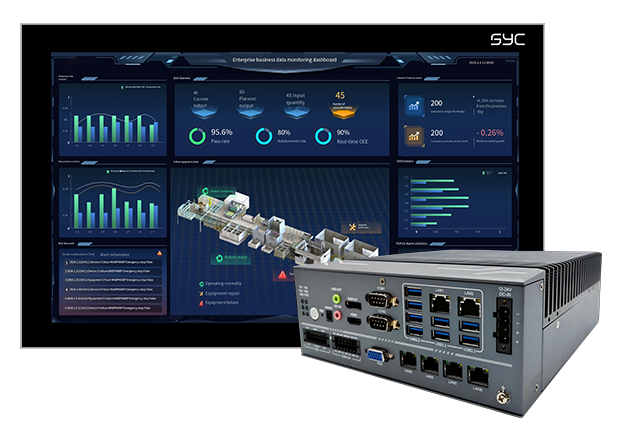

Ultra
Product Order Number: SYCPCUSM2105-600016
Product Manual: Download Link
Hardware Parameters
| Product Model | SYCPCUSM2105-600016 | |
|---|---|---|
| Touchscreen | Size | 21.5" |
| Resolution | 1920（H）* 1080（V） | |
| Display Ratio | 16:09 | |
| Brightness | 250 nits | |
| Contrast Ratio | 1000:01:00 | |
| Touch Type | P-cap Multi-Touch | |
| Suggesting Cut Size | 514.6mm*306.1mm | |
| System | CPU | Intel® Core™ i5-12400 |
| Memory(DDR5) | 32GB | |
| Storage(SSD) | 1TB | |
| Operating System | Windows 10 IoT LTSC 64-bit, Version: 21H2 | |
| Power Supply | Power Input | 12~24V DC |
| Interfaces | USB | 8*USB3.2 Gen2 |
| COM | 2RS232/422/485, 4RS232 TX RX GND | |
| Ethernet Port | 6*RJ45 (10/100/1000 Mbps) | |
| WIFI | 1*Wi-Fi Dual-Band (Supports 2.4G & 5G Bands) | |
| 4G Module | Optional | |
| Display | 1VGA, 1HDMI, 1* DP | |
| OS Recovery | OS Recovery (Triggered when power is connected after inserting the pin) | |
| Environmental Tests | Shock Resistance | Operation: 10G@11ms, Non-operation: 20G@11ms |
| Random Vibration | 5~500Hz, 2Grms（SSD）operation | |
| Reliability | 7*24h | |
| Operating Temperature | -10~55℃(SSD) | |
| Storage Temperature | -40~60℃(SSD) | |
| Operating Humidity | 50℃ 95%RH (SSD) | |
| Interference Resistance | EMI/EMS interference detection standards | |
Software Configuration
| Function | Function Description |
|---|---|
| Core Capabilities | |
| External Variable I/O Points | 6000 |
| Number of Channels | 16 |
| Tags Management | Supports I/O and internal tag configuration for managing real-time data, status information, and control commands in industrial processes |
| HMI/Dashboard Management | Supports AI-powered automatic HMI generation and drag-and-drop project building with rich resource library, flexible dashboard design, and diverse data visualization |
| Event Management | Powerful automation event orchestration engine for executing complex logic control and automated tasks |
| Historical Data | Records raw time-series data of tags with customizable storage frequency and rules |
| Data Management | Supports custom table structures, data acquisition, processing and analysis, with backup and scheduled cleanup capabilities |
| Alarm Management | Provides flexible alarm rule configuration with alarm event linkage for closed-loop alarm-driven business scenarios |
| Recipe Management | Manages and controls recipe parameters with standardized recipe components and flexible recipe page configuration |
| Shift Management | Defines scheduling cycles, shift quantities, and shift durations as needed, applied to data management and statistical analysis |
| Connectivity Management | Provides visual configuration for zero-code seamless connection with devices, databases, and third-party systems |
| Multi-language Management | Meets the needs of enterprise users across different regions and language environments, improving project convenience and applicability |
| Permission Management | Provides role and user management functions to allocate user permissions through role management, ensuring data security |
| Log Management | Automatically records user actions and behaviors in the system, allowing administrators to track system operation records |
| Equipment Operation Statistics | Provides equipment operation signal configuration with automatic statistics, outputting real-time statistical variables and historical analysis data tables for equipment status and OEE dashboards and report analysis |
| Scripting | Supports C# scripting with AI-powered automatic script generation for secondary development, enabling specific operations and automated tasks |
| Advanced Development | Provides platform and SDK for customized development and feature extension, with self-developed page component capabilities |
| Informatization Components | |
| Process Curve Analysis | Intuitively monitors data trend changes, supports business tag-defined curve data with standard analysis rules |
| Badge Management | Binds badge ID to user information, simplifying login process for one-tap quick system access |
| Flow Components | Dynamically displays product manufacturing process with status, flow paths, and key node information across different production stages |
| SPC Analysis | Real-time monitoring of key parameter characteristics, evaluating process stability and reliability, identifying abnormal fluctuations with alerts |
| Backend Services | |
| Remote O&M | Supports remote diagnosis and troubleshooting of equipment faults, minimizing system or equipment downtime |
| Expansion Capabilities(Hardware and vision software integration customization costs not included) | |
| Barcode Scanner | Supports flexible configuration of scan-triggered execution logic for automated barcode data acquisition and processing |
| Camera | Meets industrial monitoring scenarios including safety production monitoring (fire detection), production process traceability, and integrated vision-control applications |
| Label Printer | Supports custom label print styles and content with label printing task scheduling |
| Vision Camera | Combines vision technology for image or motion analysis and recognition, monitoring abnormal signals and triggering linked business operations |
Dimension Drawings

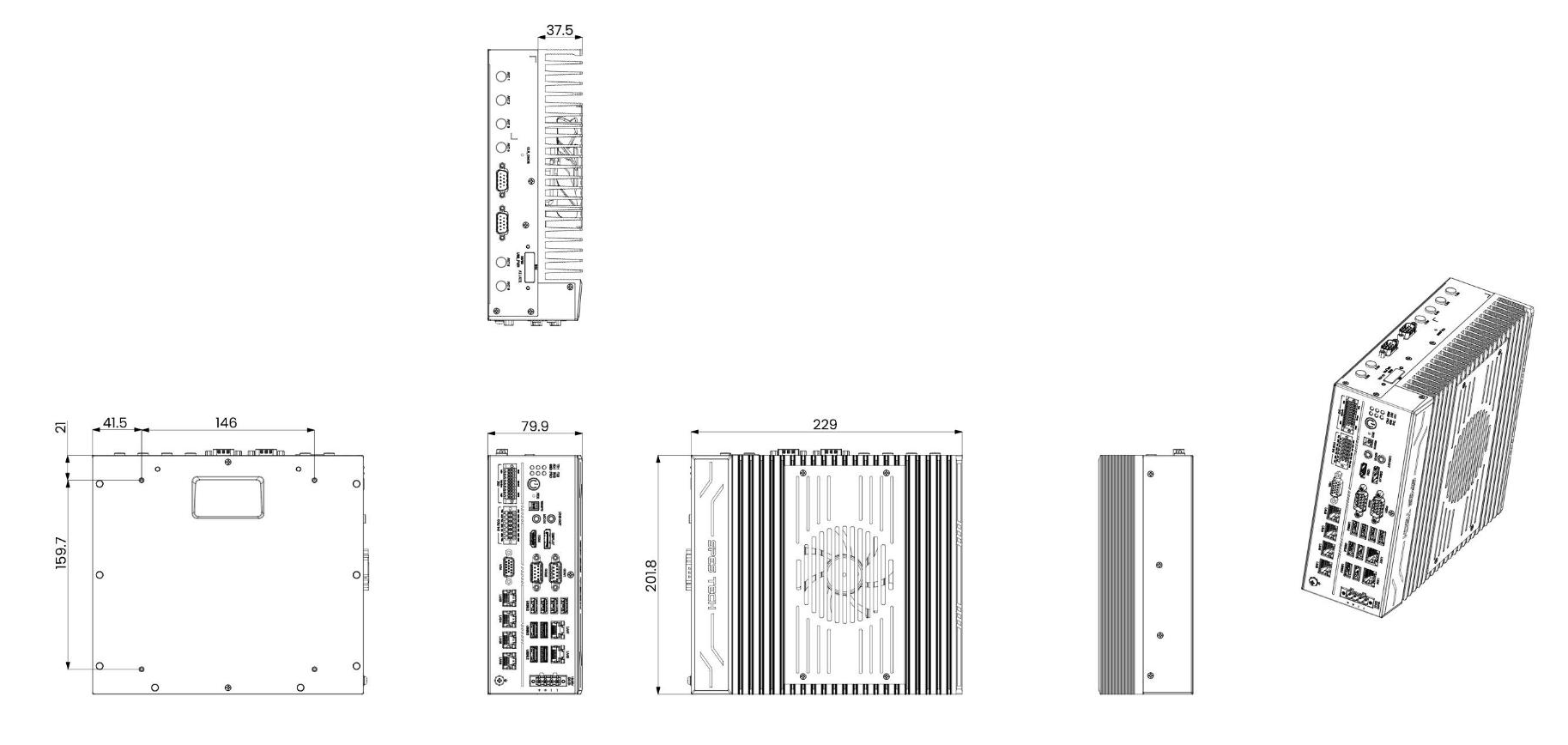

Host Dimension Drawing

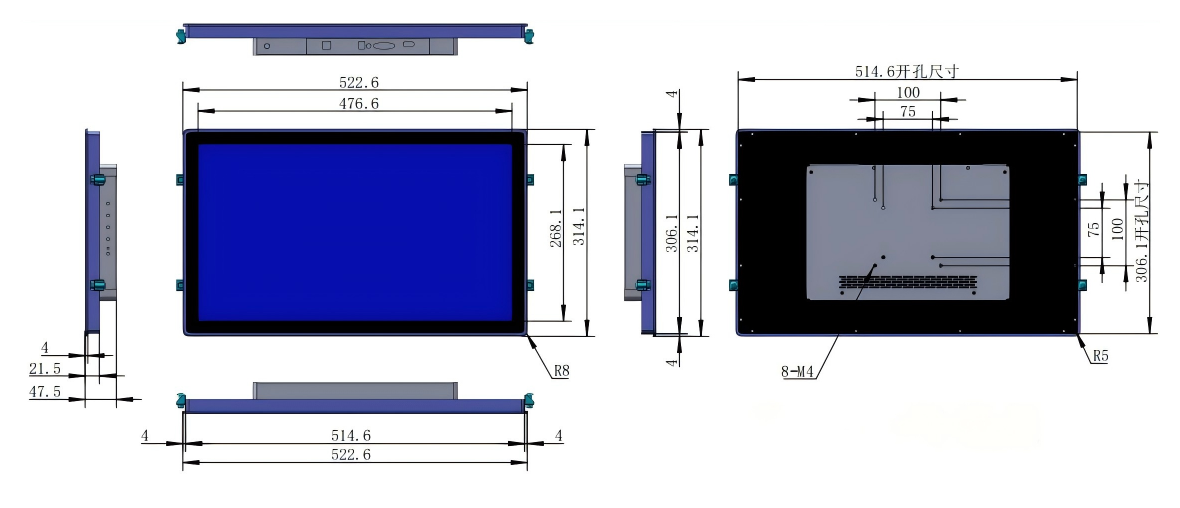

Touch Display Dimension Drawing
